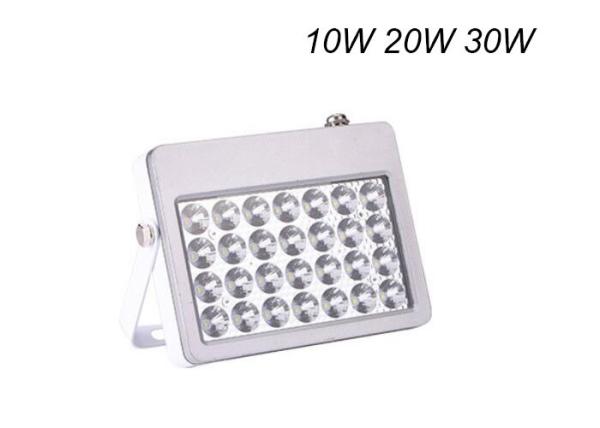

White Housing Outdoor Flood Light Fixtures Waterproof IP65 With Reflector 60°Beam Angle
Quick Details
1. Power:10W 20W 30W
2. Voltage:AC85V - 265V
3. Beam Angle:60°
4. IP Grade:IP66
5. Certification:CE,Rohs,UL
6. Warranty:Two years
Technical Datas
| Model No. | AL-FLAP1-10W AL-FLAP1-20W AL-FLAP1-30W |
| Input Voltage | AC85-265V |
| Power | 10W 20W 30W |
| Power Factor | PF > 96% |
| LED Type | COB LED |
| CRI | Ra>80 |
| Luminous Efficiency | 80~100lm/W |
| Color | R/G/B/Y/Amber/W/CW/WW |
| Color Temperature | 3000K 4000k 6000K |
| LED Chip | Taiwan COB chip |
| Beam Angle | 90° |
| Dimmable | NO |
| IP Grade | IP66 |
| Material | Aluminum Housing + Tempered Glass |

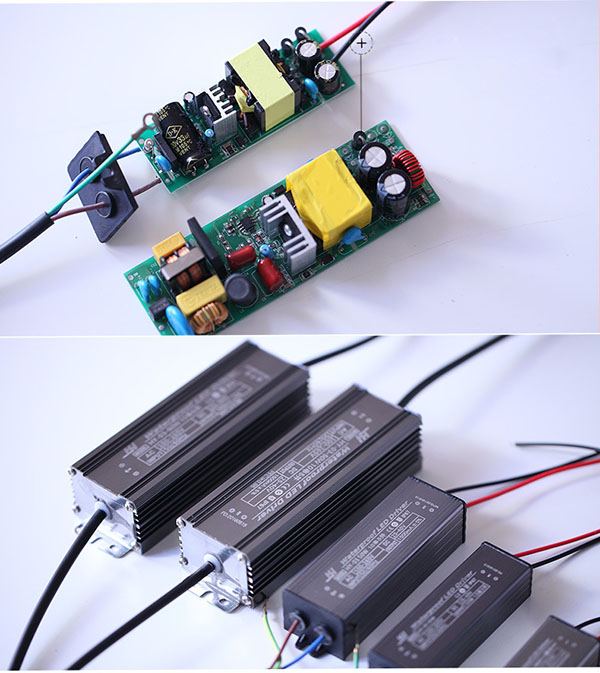

| Driver | Wide voltage + Waterproof +isolated +constant current |
| Power Cable Length | 2M |
| Certification | CE,RoHS,UL |
| Warranty | 2 years |
Model Information
| Model No. | Power | Light Size | Weight |
| AL-FLAP1-10W | 10W | 110 x 95 x 30MM | 0.53Kg |
| AL-FLAP1-20W | 20W | 120 x 155 x 30MM | 0.81Kg |
| AL-FLAP1-30W | 30W | 180 x 140 x 30MM | 1.11Kg |
Application
Stadium,gym,square,billboard,school,hotel,park,town landscape lighting,factory warehouse,workshop,
tunnel, agriculture ligting.etc.
Competitive Advantage
1. LED:Taiwan Epistar LED,famous brand Chip,good quality,long lifetime.40000H.
2. Appearance:With reflector,good lighting effect.
3. Thickened Aluminum lamp body:Keep perfect heat dissipation,long lifespan.
4. High PF power supply.
Kindly Note
1) The outdoor flood light is IP65,it can light outdoor,but can not be lighten underwater.If you need
the light to be lighten underwater,pls check our LED underwater lights catalogue.
2) Pls be sure that the power is cutt off before install,fix and replace the lamp.
3) Warm tips:professional maintanance would keep the light long lifetime.
4) Pls contact our professional person to solve the problems during using.
White Housing 10W 20W 30W LED Flood Light Photo Show
