3 x 3W IP67 Underground Light With Aluminum Housing Round And Square SS Cover
Quick Details
1. Power:3W,9W
2. Voltage:24V,120V,240V
3. Color:R/G/B/Y/RGB 3in1/WW/CW/W
4. Light Size:Φ116mm x H73mm
5. Lens:Symmetrical & Asymmetrical
6. Beam Angle:15°/30°/60°
7. Material:304/316 stainless steel + Die-casting aluminum
8. Warranty:Two years
Technical Datas
| Model No. | AL-2CD |
| Input Voltage | 24V,120V,240V |
| Power | 3W;9W |
| Light Size | Φ116mm x H73m |
| Sleeve Size | Φ110mm x H118m |
| Color | R/G/B/Y/RGB 3in1/Amber/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 3pcs |
| Beam Angle | 15°/30°/60° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 1.14Kg |
| Front Cover | 304 / 316 Stainless Steel |
| Housing | Die-casting aluminum |
| Sleeve | PVC |
| Carton Package Dimension | 27 x 27 x 29CM/8pcs |
| Carton Package Weight | 7Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Lens:Asymmetrical and symmetrical optical lens,efficiency≥85%
Gasket:Molding shaped silicone seal
Glass:Step tempered galss,T=8mm
Cable gland:IP68 PG-9 copper with nickel-coated.
LED:High power LED
Loading capacity:Exert force area of Φ10=1330Kgs, Φ30=1840Kgs
Applicaation environment: -20℃-40℃
Power cable:24VDC low voltage:
H05RN-F 2x1.0mm² L=0.5M
Main voltage:
H05RN-F 3x1.0mm² L=0.5M
RGB 24VDC
H05RN-F 4x0.75mm² L=0.5M
Mounting Sleeve:015PVC
Model Information
| Model No. | Color | Cover Shape | Power |
| AL-2CDR0302 | W/WW/CW/R/G/B/Y | Round | 3 x 2W |
| AL-2CDR0304 | RGB | Round | 3 x 3W |
| AL-2CDR0304M | RGB with DMX512 | Round | 3 x 3W |
| AL-2CDR0305 | RGB 3in1 | Round | 3 x 3W |
| AL-2CDR0305M | RGB 3in1 with DMX 512 | Round | 3 x 3W |
| AL-2CDS0302 | W/WW/CW/R/G/B/Y | Square | 3 x 2W |
| AL-2CDS0304 | RGB | Square | 3 x 3W |
| AL-2CDS0304M | RGB with DMX512 | Square | 3 x 3W |
| AL-2CDS0305 | RGB 3in1 | Square | 3 x 3W |
| AL-2CDS0305M | RGB 3in1 with DMX 512 | Square | 3 x 3W |
Product Advantage
- 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
- R/G/B/Y/W/CW/WW/RGB 3in1 color optional,meet different lighting design.
- Low voltage 12V 24V,high voltage 120V-240V optional.
- Symmetrical & Asymmetrical lens optional,choose the most appropriate lighting way for the building.

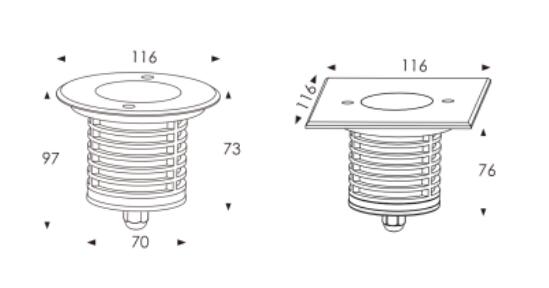

Dimension

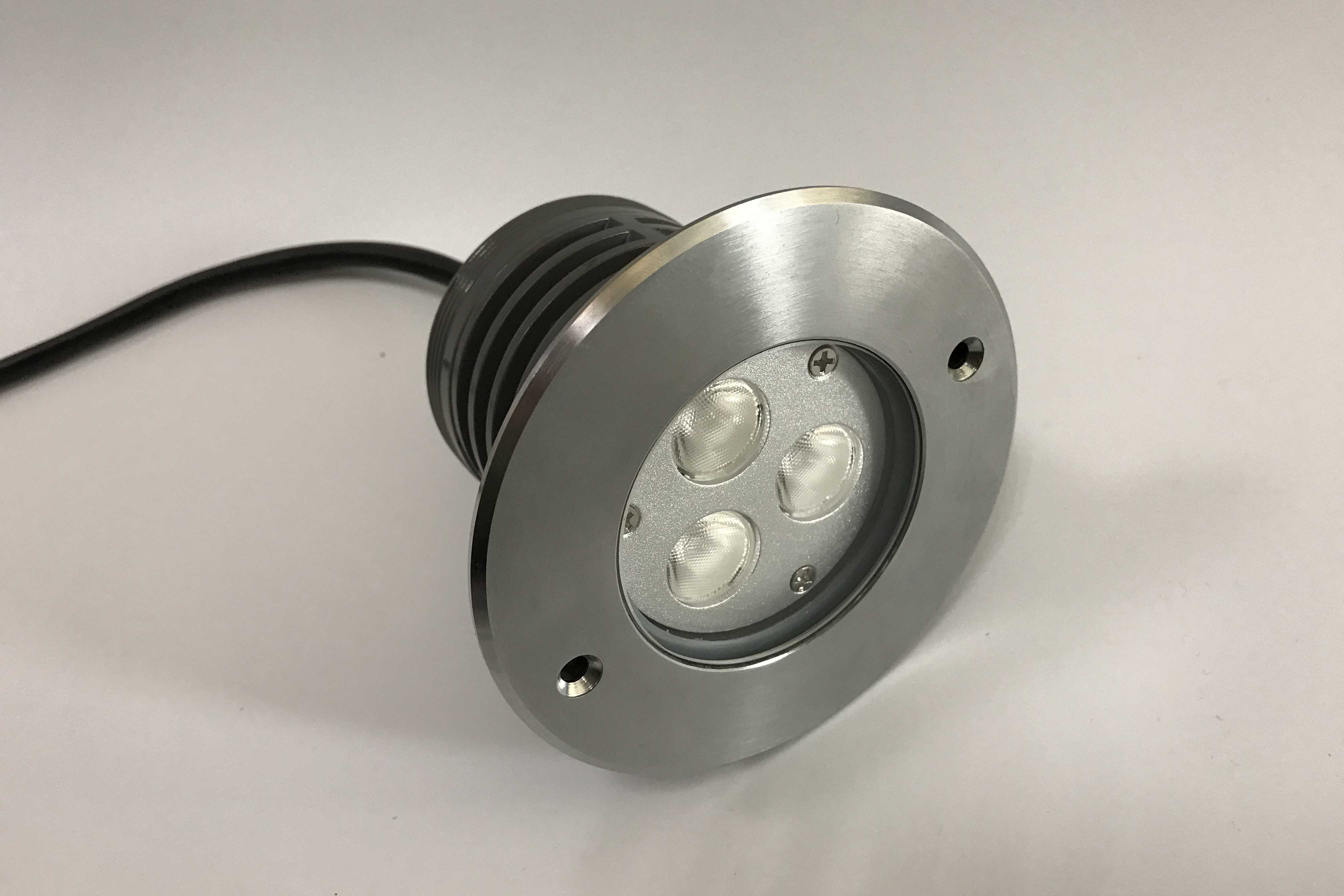

Photoes
