IP66 High Power LED Spotlight With Tree Loop Mounting Accessories

Brand Name : A.L

Model Number : AL-3VB

Certification : CE,RoHS

Place of Origin : Guangdong,China

MOQ : 5pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2,000pcs per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : Thick cartons+PE bags+ shaped pearl wool

Power : 8W-50W

IP Rating : 66

Color : Single color/RGB 3in1 DMX512/RGBW 4in1 DMX512

Material : Die-casting aluminum

Housing Color : Black/Grey

CCT : 2200K 2700K 3000K 4000K 5000K

LED Type : High power led/COB led

LED Brand : CREE/SPISTAR

Mounting : 6 ways

Dimmable : PWM,DALI,0-10V,TRIAC

Contact Now

CREE COB High Power LED Landscape Spotlight LED Projector With Tree-loop Mounting Accessories

Product Overview

  • The 3V series led garden spotlight is an adjustable outdoor spotlight with various of mouting accessories to meet diffrent moutning requirements.
  • It has high-efficieny CREE COB LED or high power LED providing high lumen output in beam angle of 6/12/25 /40/60° and 18/24/38/60° for uplighting trees and focal points.
  • We designed it with 6 different mounting accessories including:mounting base,spikes,poles,tree loops,pole mounting plate and surface mounting ceiling base.You can adust the lighting direction angle by 100 degree.
  • It can be single color,RGB 3in1 DMX512 and RGBW 4in1 DMX512,DALI,PWM,0-10V,TRIAC dimmable and controllable which make it easy to connec and control.
  • We choose every single component based on at least 5 years warranty.It's stable quality and excellent lighting effect and performance will help you win more market with good fame and profit.

Product Features

  • Various colors optional:single color,RGB 3in1 DMX512,RGBW 4in1 DMX512 meet different lighting projects requirements.
  • 4 dimmable options:DAL,PWM,0-10V,TRIAC dimmable.
  • Varisou mouting accessories:6 different mounting accessories meet different intallation requirements.
  • Excellent structural heat dissipation:8W to 50W high power.
  • Reliable LED light souce:CREE led light source,high lumen output and long lifetime.
  • Safe and durable:5 years warranty compenents and material.
  • Professional lighting control accessories: meet different lighting effect requirements.
  • Adjustable:100degree lighting direction adjustable

Parameters

Input Voltage 12V/24V,110V,220V
Power 10W 15W 20W 25W 30W 40W 60W 70W 96W
Color Single color/RGB 3in1 DMX512/RGBW 4in1 DMX512
Color Temperature 2200K 2700K 3000K 4000K 5000K
LED Chip CREE high power LED/CREE COB LED
LED Qty 1/3/4/6/12/24/36pcs
COB LED Beam Angle 18/24/38/60°
High Power LED Beam Angle 6/12/25 /40/60°
Dimmable DALI TRIAC 0-10V PWM
IP Grade IP66
CRI 80
Certification CE,RoHS
Warranty 3years

Tope Quality Material & Manufacturing Technique

Housing:

12# Die-casting grey powder coated aluminum
Gasket: Tooling shaped seal
Glass: Step tempered galss
LED: CREE high power /CREE COB LED
PCB: Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver: Constant current output,ACTEC brand
Power cable:

24V:L=0.5M H05RN-F 2x1.0m²

100/240V:L=0.5M H05RN-F 3x0.75m²

RGB 3in1 DMX512/RGBW 4in1 DMX512 L=0.5M 5x0.75m²
Spike: Auminum
Mounting base: Auminum
Tree-loop: Die-casting aluminum
Pole mounting base: Die-casting aluminum

Model No. Information

High power LED type

Model No. Color Voltage Voltage Dimension
AL-3VBA-B Single color 24V 3x3W Φ60mm xH100mm
Single color 110V,220V 3x3W
RGB 3in1 DMX512 24V 3x3W
RGBW 4in1 DMX512 24V 3x4W
AL-3VBB-B Single color 24V 4x3W Φ72mm xH128mm
Single color 110V,220V 4x3W
RGB 3in1 DMX512 24V 4x3W
RGBW 4in1 DMX512 24V 4x4W
AL-3VBC-B Single color 24V 6x4W Φ90mm xH160mm
Single color 110V,220V 6x4W
RGB 3in1 DMX512 24V 6x3W
RGBW 4in1 DMX512 24V 6x4W
AL-3VBD-B Single color 24V 12x4W Φ136mm xH230mm
Single color 110V,220V 12x4W
RGB 3in1 DMX512 24V 12x3W
RGBW 4in1 DMX512 24V 12x4W

COB LED type

Model No. Color Voltage Voltage Dimension
AL-3VBA-R Single color 24V 1x10W Φ60mm xH100mm
Single color 110V,220V 1x10W
RGBW 4in1 DMX512 24V 1x8W
AL-3VBB-R Single color 24V 1x15W Φ72mm xH128mm
Single color 110V,220V 1x15W
RGBW 4in1 DMX512 24V 1x10W
AL-3VBC-R Single color 24V 1x25W Φ90mm xH160mm
Single color 110V,220V 1x25W
AL-3VBD-R Single color 24V 1x50W Φ136mm xH230mm
Single color 110V,220V 1x50W

Mounting Accessories

IP66 High Power LED Spotlight With Tree Loop Mounting Accessories

1-Spike

2-Spike with extention pole

3-Base with extension pole

4-Tree-loop

5-Pole fixing mounting base

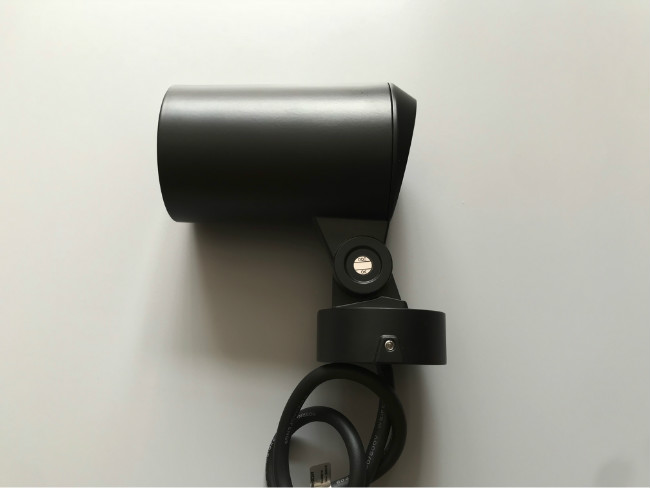

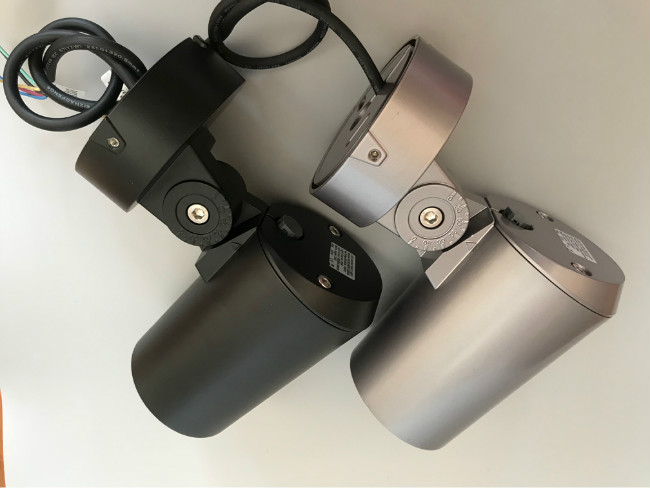

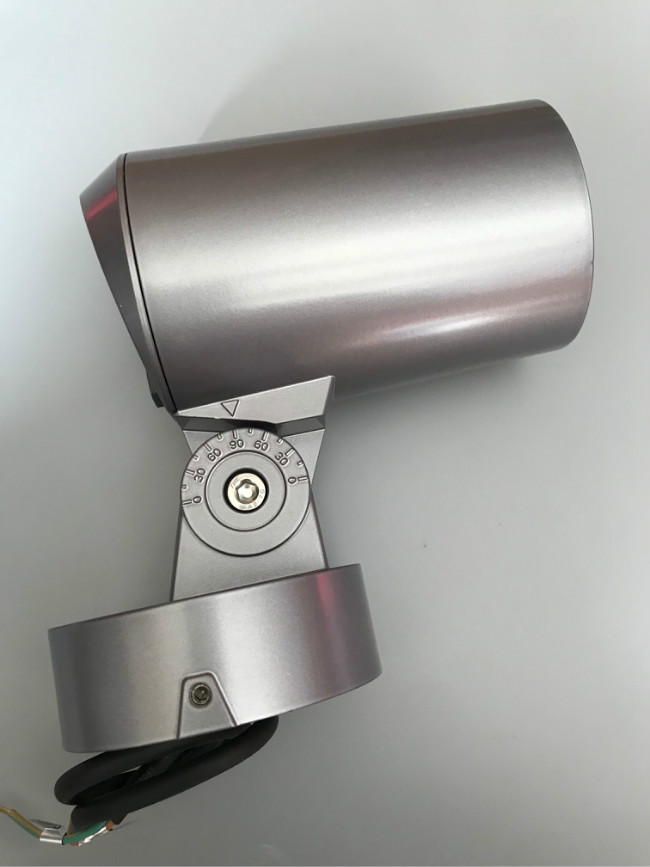

Photoes

IP66 High Power LED Spotlight With Tree Loop Mounting Accessories

IP66 High Power LED Spotlight With Tree Loop Mounting Accessories

IP66 High Power LED Spotlight With Tree Loop Mounting Accessories

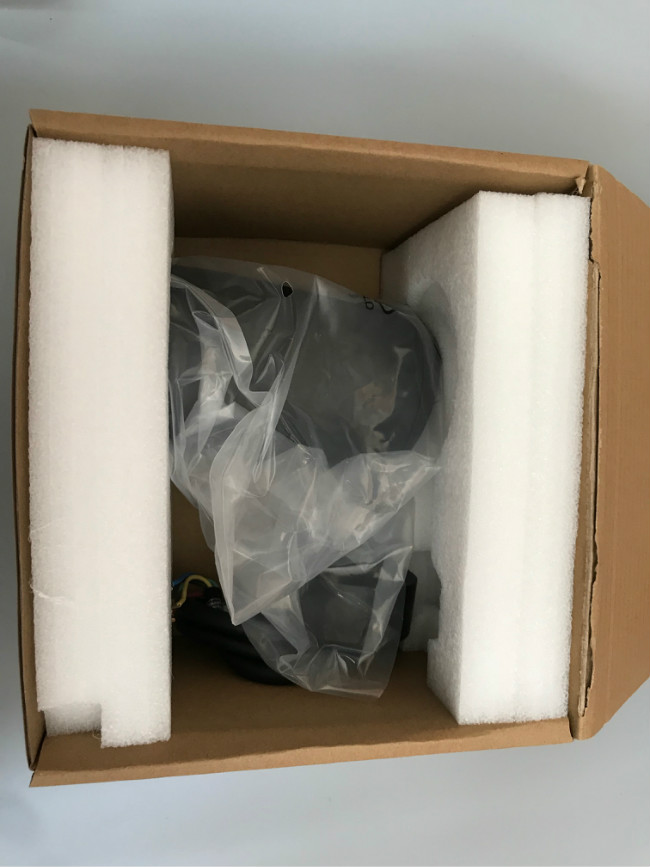

Perfect strong packing

IP66 High Power LED Spotlight With Tree Loop Mounting Accessories

Application

Garden/backyard lighting,accent lighting,building lighting,facade lighting,road lighting

IP66 High Power LED Spotlight With Tree Loop Mounting Accessories
