Powder Coated Aluminum Directional Light Garden Spotlight With ABS Spike And Base
Quick Details
1. Power: 2W,3W,4W
2. Voltage: DC12V,DC24V,AC100 - 240V
3. Beam Angle: 15°/25°/30°/45°/60°
4. IP Grade: IP65
5. Material: Die-casting aluminum+ABS
Parameters
| Model No. | AL-3A |
| Input Voltage | 12V/24V,220V |
| Power | 2W;3W;4W |
| Dimension | D42mm x H75m |
| Color | R/G/B/Y/RGB 3in1/Amber/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 2W/3W high power LED |
| LED Qty | 1pcs |
| Beam Angle | 15°/25°/30°/45°/60° |
| Dimmable | YES |
| IP Grade | IP65 |
| Carton Package Dimension | 25*24*29CM/8pcs |
| Carton Package Weight | 8Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material Specification
Housing: 12# Die-casting grey powder coated aluminum
Gasket: Tooling shaped seal
Step tempered galss: T=4mm
Cable gland: IP68 PG-9 PVC
Reflector: Optical reflector efficiency≥90%
LED: High power LED
PCB: Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver: Constant current output
Single color LED=2-circuit output
RGB 3in1 LED=6-circuit output
Applicaation environment: Temperature of water between -20℃-40℃ less than 1m depth
Power cable: 24V:L=2.0M H05RN-F 2x1.0m²
100/240V:L=2.0M H05RN-F 3x0.75m²
Spike: ABS
Mounting base: 12# Die-casting grey powder coated aluminum

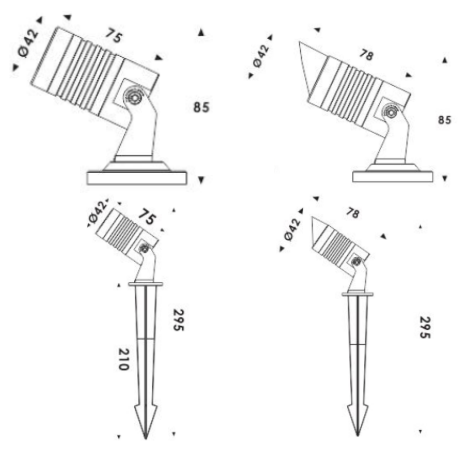

Dimension

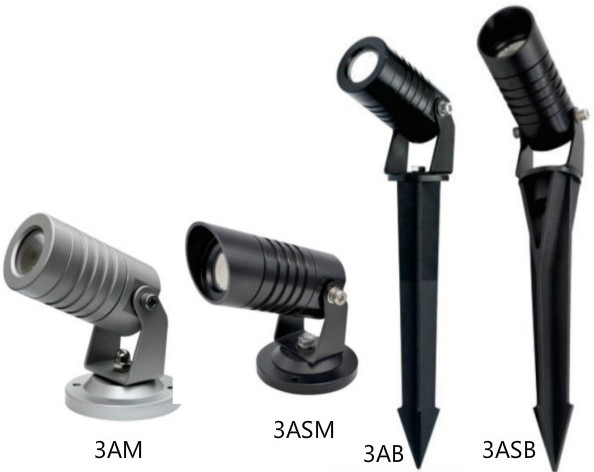

Model Number Explain
| Model No. | Spec | Voltage |
| AL-3AM AL-3AB | 1x2W,single color | DC12/24V,120-240V |
| 1x3W,RGB 3in1 | DC12/24V |
| 1x3W,RGB 3in1 with DMX512 | DC12/24V |
| 1x4W,RGBW 4in1 | DC12/24V |
| 1x4W,RGBW 4in1 with DMX512 | DC12/24V |
| AL-3ASM AL-3ASB | 1x2W,single color | DC12/24V,120-240V |
| 1x3W,RGB 3in1 | DC12/24V |
| 1x3W,RGB 3in1 with DMX512 | DC12/24V |
| 1x4W,RGBW 4in1 | DC12/24V |
| 1x4W,RGBW 4in1 with DMX512 | DC12/24V |

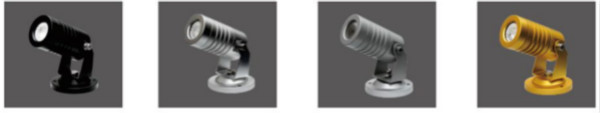

Photoes

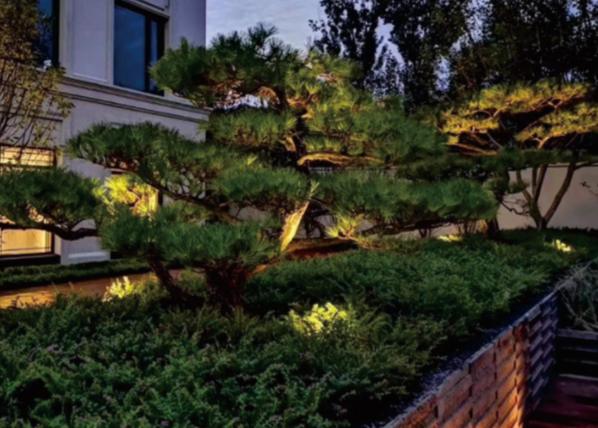

Application Scene
