2W Small Size Of LED Underground Lights With RGB 3in1 Color And PVC Sleeve
Description
This is a small size LED underground lights,67.5mm diameter,88mm height.10/25/45/60° beam angle optional could meet many
different kinds of lighting effect.IP67 waterproof ,can be used outdoor.
Single color and RGB 3in1 color for choosing,many beautiful colors changing mode.
The light can be 12/24V low safe voltage,120/240V high voltage which can be used connect to your electricity supply direclty.
Technical Datas
| Model No. | AL-2BR |
| Input Voltage | 24V,120V,240V |
| Power | 2W,3W |
| Light Size | Φ67mm x H85m |
| Sleeve Size | Φ65mm x H100m |
| Color | Single color/RGB 3in1 |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 1pcs |
| Beam Angle | 10/25/45/60° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 0.75Kg |
| Front Cover | 316 Stainless Steel |
| Housing | Die-casting aluminum |
| Sleeve | PVC |
| Carton Package Dimension | 27 x 27 x 29CM |
| Carton Package Qty | 8pcs |
| Carton Package Weight | 6Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Lens:Optical lens,efficiency≥85%
Gasket:Molding shaped silicone seal
Glass:Step tempered galss,T=12mm
Cable gland:IP68 PG-9 copper with nickel-coated.
LED:High power LED
Loading capacity:Exert force area of Φ10=1330Kgs
Applicaation environment: -20℃-40℃
Mounting Sleeve:PVC
Power Cable Details
| Voltage | Color | Cable Item No. | Cable Size | Cable Length |
| 12/24V | Single Color | H05RN-F | 2 x 1.0mm² | 0.5M |
| 120/240VAC | Single Color | H05RN-F | 3 x 1.0mm² | 0.5M |
| 12/24V | RGB | H05RN-F | 4 x 0.75mm² | 0.5M
|
Model Information
| Model No. | Color | Power | Lens | Beam Angle |
| AL-2BR | Single Color | 1 x 2W | Symmetrical | 10/25/45/60° |
| RGB 3in1 | 1 x 3W | Symmetrical | 10/25/45/60° |
| AL-C2BR | Single Color | 1 x 2W | Asymmetrical | 45|35° |
| RGB 3in1 | 1 x 3W | Asymmetrical | 45|35° |
Color Optional
- 2000K
- 3000K
- 4000K
- 6000K
- RGB 3in1
- RGBW 4in1
Competitive Advantage
- Osram/Cree high power LED,high lumen,long lifetime.
- 316 stainless steel+die-casting aluminum+fireproof PVC,high quality raw materials.
- White/RGB 3in1 color optional,beautiful lighting effect.
- Whole light IP67 waterproof,can be buried under ground.
- Power cable length can be customized according to your lighting projects.
- 2 years warranty.

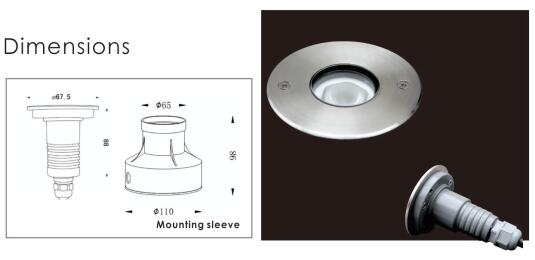

Size

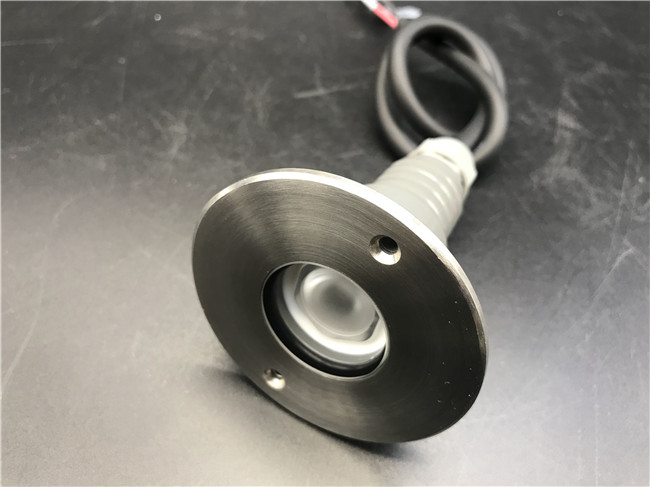

Product Photoes
Application
- Parks
- Lawn
- Garden
- Square
- Shopping mall
- Step
- Stair
- Stage
- Hotel
- Playground
- Countryside road
- School
Tag
LED underground lights,led inground lights,LED step lights,LED stair lights
