Office 12V Ra80 6500K 10mm Bendable Led Strip Lights

Product Categories
A.L Lighting Limited
Contact Now

Office 12V Ra80 6500K 10mm Bendable Led Strip Lights

Brand Name : A.L

Model Number : AL-SL-D

Certification : UL,CE,RoHS

Place of Origin : Guangdong,China

MOQ : 20pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 40,000meters per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : 5m per reel,5m packed in one anti-static bag, 80bags / 1 CTN(52x31x30CM)

Product Name : FOB/COB LED

LED Qty : 320pcs/m,528pcs/m

Width : 8mm,10mm

Lumen : 106lm/W

Color : Red,Blue,Green,2700-6500K White

Warranty : 3 years

PCB : 2oz,3oz

Color Temperature : 2700K 3000K 4000K 5000K 6500K

Contact Now


​12 / 24Volt Led Strip Lights With New FOB COB LEDs Super Bendable 180° View Angle


Features

  • LED Chip:new COB led chip,Ra80+,Ra90+,high density 320/528 pcs/m.
  • Lighting Performance:Without any dot and spot,uniform and even lighting effect.
  • Voltage:12/24VDC,low voltage safe to use.
  • FPCB:Super flexiable,small bendable angle.
  • Beam Angle:180degree beam angle,wider than common SMD strip light.
  • PCB:Flexible PCB,2oz or 3oz thickness,black/white/golden color options.
  • Lighting Colors:Red,Green,Blue,Warm White,Natural White,White,Cool White
  • Waterproof:IP20 and IP65 IP67 waterproof,both indoor and outdoor application

Specification

LED Type: COB LED
LED Qty: 320/538LEDS per meter
Power: 7.7W/M,10W/M
Length: 5M &16.4Ft/Reel
Width: 8mm/10mm
Color: Warm White,Natural White,White,Cool White,Red,Green,Blue
Color Temperature: 2000K 3000K 4000K 5000K 6500K
Voltage: 12/24VDC
Lumen: 106lm/W
CRI: Ra80+,Ra90+
Beam Angle: 180degree
PCB Thickness: White/Black/Golden
PCB Thickness: 2oz,3oz,4oz
IP Grade: IP20 IP65 IP67
Working Temperature: -250C ~550C
LED Lifetime: >50000 hours
Certification: CE ROHS UL
Warranty: 3 years
Packing:

5m/reel,80 rolls/CTN

Models Options

Model Number LED Qty Power FPC Width Lumen Min.cut
AL-SL-D328 328pcs/m 7.7W/m 8mm 693~816lm 50mm
AL-SL-D520 520pcs/m 10W/m 10mm 880~1000lm 22.37mm

320 Chips/m Technical Datas

Voltage Color Temperature Watts Lumen Efficiency Pitch Withd

12VDC

 2700K 7.7W 693lm 90lm/W 50mm 8mm
3000K 7.7W 716m 93lm/W 50mm 8mm
4000K 7.7W 816lm 106lm/W 50mm 8mm
5000K 7.7W 816lm 106lm/W 50mm 8mm
6500K 7.7W 816m 106lm/W 50mm 8mm

24VDC

 2700K 7.7W 693lm 90lm/W 100mm 8mm
3000K 7.7W 716m 93lm/W 100mm 8mm
4000K 7.7W 816lm 106lm/W 100mm 8mm
5000K 7.7W 816lm 106lm/W 100mm 8mm
6500K 7.7W 816lm 106lm/W 100mm 8mm

528 Chips/m Technical Datas

Voltage Color Temperature Watts Lumen Efficiency Pitch Withd

12VDC

 2700K 10W 880lm 88lm/W 22.73mm 10mm
3000K 10W 910lm 91lm/W 22.73mm 10mm
4000K 10W 1000lm 100lm/W 22.73mm 10mm
5000K 10W 1000lm 100lm/W 22.73mm 10mm
6500K 10W 1000lm 100lm/W 22.73mm 10mm

24VDC

 2700K 10W 880lm 88lm/W 45.45mm 10mm
3000K 10W 910lm 91lm/W 45.45mm 10mm
4000K 10W 1000lm 100lm/W 45.45mm 10mm
5000K 10W 1000lm 100lm/W 45.45mm 10mm
6500K 10W 1000lm 100lm/W 45.45mm 10mm

IP Grade Explain

  • IP20:Nowaterproof
  • IP65A:Inject with heat shrink tube
  • IP65B:Inject with silicone tube
  • IP67:Inject with solid silicone tube


Photoes

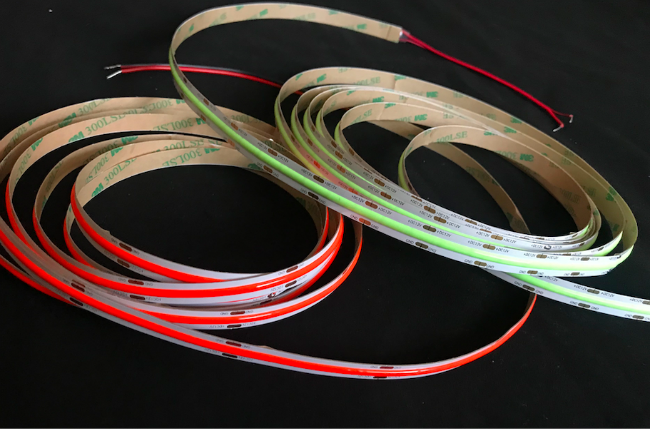

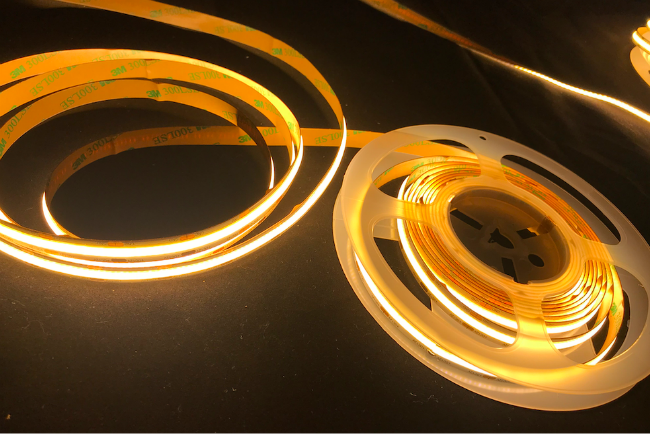

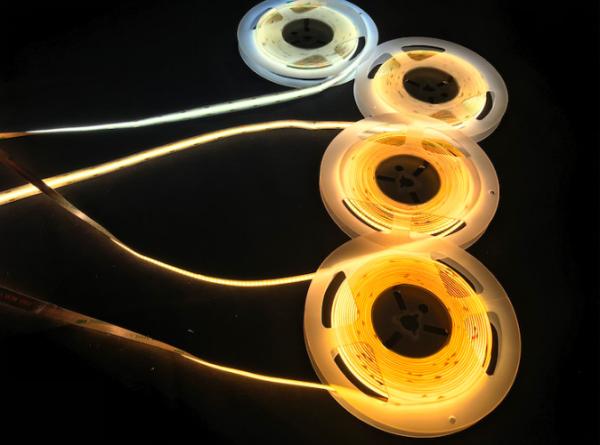

  • LED Details

Office 12V Ra80 6500K 10mm Bendable Led Strip Lights

Office 12V Ra80 6500K 10mm Bendable Led Strip Lights

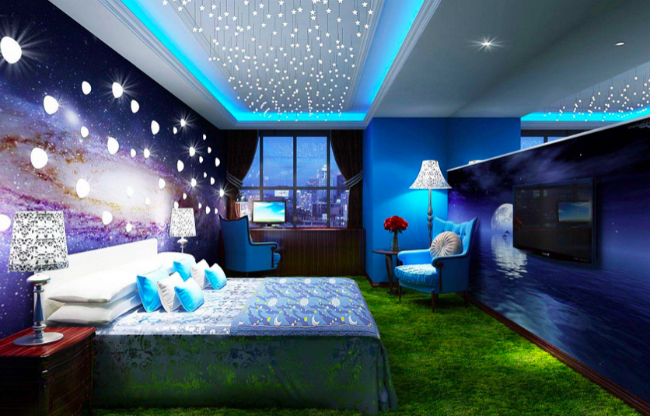

  • Lighting

Office 12V Ra80 6500K 10mm Bendable Led Strip Lights



Warm Tips

  • Clean the surface of object where you want to install the strip lights.
  • Please make sure the voltage is 12v or 24v.
  • Please choose the right IP grade if you need them to be waterproof application

Application

  • Suitable for atmosphere rending:Natural colorful strip lights,effectively creat a sense of space freshness.
  • Suitable for office environment:Decorated with light strip,is not only magnifies the visual sense of space,but also enhances the style of the entire offce space.
  • Suitable for public places:Can be helpful for the public places to have different styles.

Office 12V Ra80 6500K 10mm Bendable Led Strip Lights
